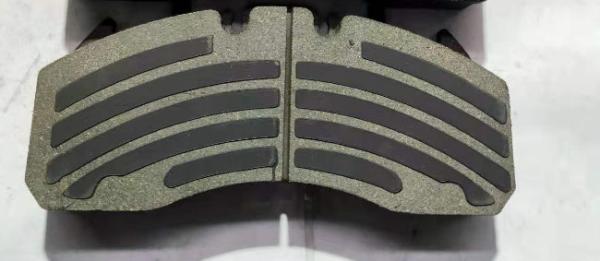

Auto Brake Pads WVA29042 Low Metallic Low Noise 100000km Warranty
BAIYUN Truck Disc Brake Pads Details:
Data Information
| Product | Truck Brake Pads |
| Part No. | WVA29087/WVA29179/WVA29042/WVA29085 |
| Size | 247.7*109.7*30 mm |
| Friction coefficient | 0.35~0.45 |
| Warranty | 80,000-100,000km |
Steel Backing Plate & Reqair Kit of Truck Brake Pads WVA29087
Disc brakes are generally used in passenger cars, but due to their
stable performance at higher speeds and resistance to brake fade,
they are gradually spreading into the commercial vehicle segment,
where drum brakes were traditionally chosen for their longer
service life. There is increasing demand from customers for longer
service life and higher quality, and Baiyun is committed to meeting
them through further development of the disc brake’s reliability.
There are two types of disc brakes.
The "opposed piston type disc brake" has pistons on both sides of
the disc rotor, while the "floating type disc brake" has a piston
on only one side. Floating caliper type disc brakes are also called
sliding pin type disc brakes.
Disc brake construction
The brake rotor (disc) which rotates with the wheel, is clamped by
brake pads (friction material) fitted to the caliper from both
sides with pressure from the piston(s) (pressure mechanism) and
decelerates the disc rotation, thereby slowing down and stopping
the vehicle.
How disc brakes work
When the driver steps on the brake pedal, the power is amplified by
the brake booster (servo system) and changed into a hydraulic
pressure (oil-pressure) by the master cylinder. The pressure
reaches the brakes on the wheels via tubing filled with brake oil
(brake fluid). The delivered pressure pushes the pistons on the
brakes of the four wheels. The pistons in turn press the brake
pads, which are friction material, against the brake rotors which
rotate with the wheels. The pads clamp on the rotors from both
sides and decelerate the wheels, thereby slowing down and stopping
the vehicle.
Brake pads for Trucks
Friction Materials
1, Friction Raw Material
2,Types of friction materials
*1 Sintered alloy: The phenomena where the particles of powder
material join together and turns into a solid substance by
pressurizing and fabricating the powder material and heating it at
temperatures below the melting point. Material that is not made by
melting metal, but instead by sintering metal powders is called
sintered alloy.
*2 C/C composite: Carbon fiber reinforced carbon composite. Carbon
composite material has been strengthened with carbon fiber. It is
extremely thermally stable and lightweight. This material is often
used for brake rotors and brake pads for aircraft and racing cars.
3, Friction Material of Baiyun
4, Manufacturing process of friction materials
COMMERCIAL VEHICLES TRUCK BRANDS
DAF | Daimler AG (Daimler, EvoBus Freightliner, Fuso,
Mercedes-Benz) | Dana Holding Corporation | Ege Fren | Haldex |
Hendrickson | Inver Press | Kamaz | Knorr-Bremse | Knott Group |
Krone Group (gigant) | | Meritor | Paccar (DAF, Leyland, Foden) |
Schmitz Cargobull | Tuna Stålrör | Valx | Volvo Trucks (RVI, UD
Trucks, Volvo) | WABCO | Beinben-Truck | BPW | Brakes India Limited
| Wuhan Youfin Auto Parts Co (Youfin) | Yutong | ZF Friedrichshafen
ABOUT BAIYUN
Zhengzhou Baiyun Industrial Co., Ltd., since 1977, is a national
high-tech enterprise with main products of brake friction material
and its products. For more than 40 years, Baiyun focus on the
R&D, production and selling of brake linings & pads for
commercial and passenger vehicles, fighting for human traffic
braking safety. Till now, Baiyun has become an important supporting
supplier and partner of many famous domestic and overseas auto
brands. Baiyun has also reached long term strategic cooperation
with many famous domestic and overseas auto parts distributors.
Zhengzhou Baiyun Industrial Co., Ltd., is one of the leading auto
friction braking enterprise in China, Top 10 enterprises of China
Friction Material Industry and member of friction industry
association. Baiyun has passed ISO9001 Quality Management System,
IATF16949 Auto Industry Quality System Certification. Long-term
cooperation is established with international authoritative test
organizations such as America LINK and GREEN to test Baiyun
products regularly. More than 1000 models products have obtained
E-mark certification.
Baiyun will insist on the enterprise mission "create value for
customers, create happiness for employees" continuously forge
ahead, and create a more brilliant future.
WHY CHOOSE US
1. Select the world's top companies as material suppliers, such as:
using American DOPONT aramid fiber, Dutch DSM mineral fiber,
Japanese TENAC potassium titanate whisker, etc., to ensure that the
material content reaches the standard and performance is stable.
2. The self-developed excellent formula with excellent performance
ensures that the braking performance of the product is higher than
the international industry standard in friction coefficient and
wear rate, and meets the European standard in environmental
protection.
3. Bench test to simulate the real brake friction performance and
international LINK friction material test, as well as real
validation test at road test base, to build excellent and reliable
performance of products.
4. In the production process, large-scale automatic proportioning
system and full-automatic equal pressure hydraulic press are used
to press, which ensures the accuracy control of proportioning
accuracy and the accuracy control of pressure consistency. To
achieve consistency and stability of product quality.
5. It has passed IATF16948 automobile quality system certification
and E-Mark certification of EU market.
