Truck Brake Pads WVA29087/ WVA29179 / WVA29042 / WVA29085 Repair Kits

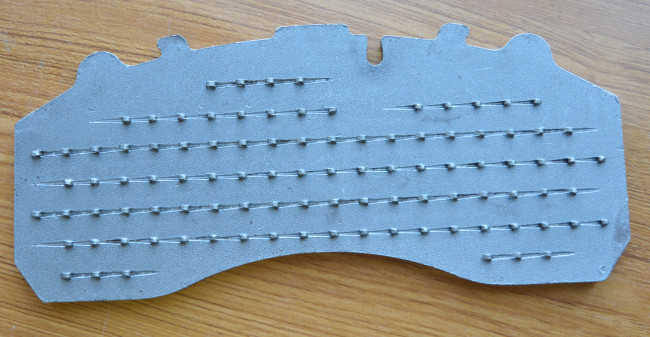

Truck Brake Pads WVA29087/ WVA29179 / WVA29042 / WVA29085 Backing Plate

Top 10 Disc Brake Pads Of China Baiyun Cars & Buses Disc Brake Pads With CE

1), Passenger Car Disc Brake Pads

Partners of BAIYUN Passenger Car Disc Brake Pads
Fiat Group (Alfa Romeo, Chrysler, Ferrari, Fiat, Lancia) | Ford Motor Company (Aston Martin, Ford, Mazda) | BYD Auto | Chang’an | Chassis Brakes International | Chery | Continental Teves | Dac | Daewoo | Daimler AG (Mercedes-Benz, AMG) |Advics | Akebono | APG-FTE | BAIC Group | BMW Group (BMW, BMW M GmbH, Rolls-Royce) | Brembo | Brilliance | GAC Group | Geely (Geely, Volvo) | GM (Chevrolet, Opel, Vauxhall) | Great Wall | Haima | Honda | JMC | Land Rover | Mando | McLaren | Mitsubishi | Nissin Brake | PSA Group| Qoros | Renault-Nissan (Renault, Nissan, Dacia) | SAIC | Suzuki | Tata | Toyota | TRW | VW Group

2), Commercial Vehicle Disc Brake Pads

Data Information of WVA29087

Partners of BAIYUN Commercial Vehicle Disc Brake Pads

DAF | Daimler AG (Daimler, EvoBus Freightliner, Fuso, Mercedes-Benz) | Dana Holding Corporation | Ege Fren | Haldex | Hendrickson | Inver Press | Kamaz | Knorr-Bremse | Knott Group | Krone Group (gigant) | Mack | Meritor | Paccar (DAF, Leyland, Foden) | Schmitz Cargobull | Tuna Stålrör | Valx | Volvo Trucks (RVI, UD Trucks, Volvo) | WABCO | Beinben-Truck | BPW | Brakes India Limited | Wuhan Youfin Auto Parts Co (Youfin) | Yutong | ZF Friedrichshafen

Feature of BAIYUN Disc Brake Pads

Test Results of BAIYUN Passenger Cars Brake

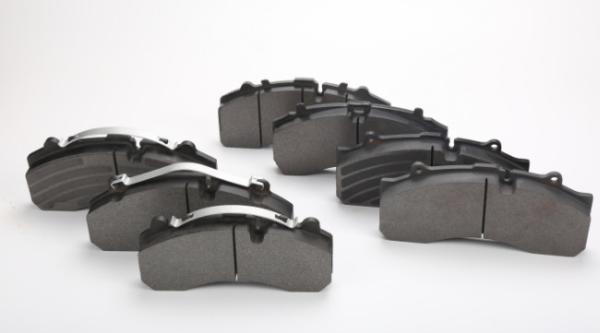

Disc Truck Brake Pads

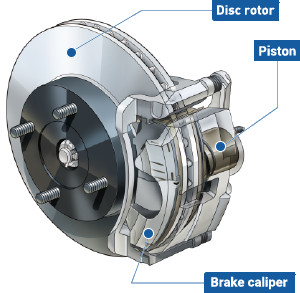

Brake rotors of disc brakes rotate with the wheels, and brake pads, which are fitted to the brake calipers, clamp on these rotors to stop or decelerate the wheels. The brake pads pushing against the rotors generate friction, which transforms kinetic energy into a thermal energy.

This thermal energy generates heat, but since the main components are exposed to the atmosphere, this heat can be diffused efficiently. This heat-dissipating property reduces brake fade, which is the phenomenon where braking performance is influenced by the heat. Another advantage of disc brakes is its resistance to water fade, which occurs when the water on the brakes significantly reduces braking force. When the vehicle is in motion, the rotor spins at high speeds and this rotational motion discharges the water from the rotors themselves, resulting in stable braking force.

Disc brakes are generally used in passenger cars, but due to their stable performance at higher speeds and resistance to brake fade, they are gradually spreading into the commercial vehicle segment, where drum brakes were traditionally chosen for their longer service life. There is increasing demand from customers for longer service life and higher quality, and Baiyun is committed to meeting them through further development of the disc brake’s reliability. There are two types of disc brakes.

The "opposed piston type disc brake" has pistons on both sides of the disc rotor, while the "floating type disc brake" has a piston on only one side. Floating caliper type disc brakes are also called sliding pin type disc brakes.

Braking System

Friction Materials

1, Friction Raw Material

2,Types of friction materials

*1 Sintered alloy: The phenomena where the particles of powder material join together and turns into a solid substance by pressurizing and fabricating the powder material and heating it at temperatures below the melting point. Material that is not made by melting metal, but instead by sintering metal powders is called sintered alloy.

*2 C/C composite: Carbon fiber reinforced carbon composite. Carbon composite material has been strengthened with carbon fiber. It is extremely thermally stable and lightweight. This material is often used for brake rotors and brake pads for aircraft and racing cars.

3, Friction Material of Baiyun

4, Manufacturing process of friction materials

Zhengzhou Baiyun Industrial Co., Ltd., since 1977, is a national high-tech enterprise with main products of brake friction material and brake products. For more than 40 years, Baiyun focus on the R&D, production and selling of brake linings & pads for commercial vehicles and passenger cars, fighting for human traffic braking safety. Till now, Baiyun has become an important supporting supplier and partner of many famous domestic and overseas auto brands. Baiyun has also reached long term strategic cooperation with many famous domestic and overseas auto parts distributors.
Zhengzhou Baiyun Industrial Co., Ltd., is one of the leading auto friction braking enterprise in China, Top 10 enterprises of China Friction Material Industry and member of friction industry association. Baiyun has passed ISO9001 Quality Management System and IATF16949 Auto Industry Quality System Certification. Long-term cooperation is established with international authoritative test organizations such as America LINK and GREEN to test Baiyun brakes regularly. There are more than 1000 models brakes of Baiyun have obtained E-mark certification till now.
Baiyun will insist on the enterprise mission "create value for customers, create happiness for employees" continuously forge ahead, and create a more brilliant future.
